Belt Conveyor

Belt Conveyor Specification

Control System
PLC/Manual

Belt Type
PVC/Rubber

Motor Type
AC Gear Motor

Equipment Type
Industrial Conveyor

Wheel Type
Swivel Casters (Optional)

Lifting Speed
0.5-2 m/s

Features
Easy maintenance, Modular design

Rotation Type
Unidirectional/Bidirectional

Condition
New

Lifting Capacity
Up to 100 kg/m

Max. Lifting Load
200 kg (varies by model)

Max. Lifting Height
1.5 meters (Adjustable)

Power Source
Electric

Power Consumption
1-5 kW (depending on configuration)

Voltage
220V/380V

Length of Belt
Customizable (3-20 meters standard)

Feature
Corrosion-resistant, Heavy Duty, Anti-skid belt surface

Attributes
Durable construction, High efficiency

Life Span
10+ years with proper maintenance

Noise Level
<65 dB

Installation Type
Stationary or Mobile

Conveyor Width
300-1200 mm (customizable)

Speed Adjustment
Variable frequency drive (VFD) optional

Belt Thickness
5-12 mm

Drive Location
End Drive/Center Drive

Frame Material
Mild Steel or Stainless Steel

Load Per Meter
Up to 100 kg/meter

Application
Material handling, Packaging, Warehousing, Logistics

Operating Temperature
-10C to +60C

Safety Features
Emergency stop, Safety guards

Belt Alignment
Automatic tracking system (optional)

Surface Treatment
Powder coated/Painted

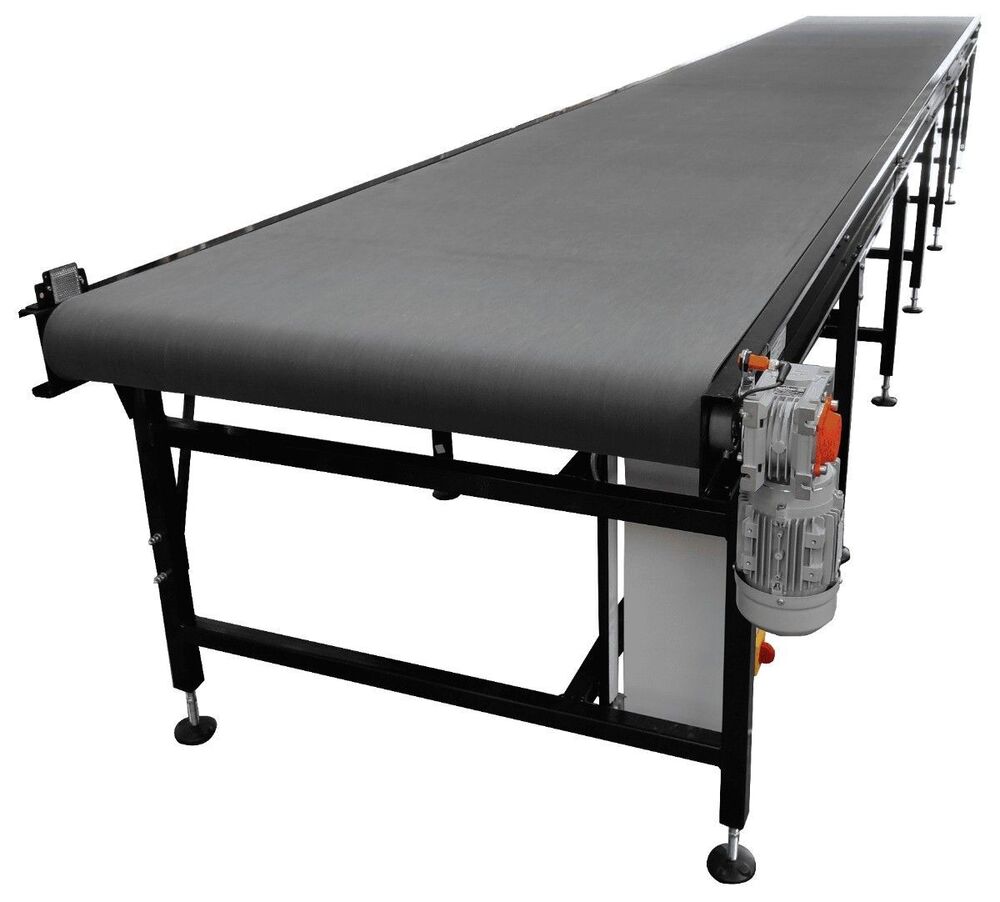

About Belt Conveyor

Belt Conveyor is a highly efficient and versatile material handling system designed for smooth and continuous transportation of goods. It uses a durable moving belt driven by a motor, ensuring reliable and consistent performance in various industrial applications.

Manufactured with a strong structure and high-quality components, it is ideal for handling bulk materials, cartons, bags, and packages in warehouses, factories, packaging units, and logistics operations. The system offers low maintenance, high efficiency, and long service life.

Its design allows easy customization in terms of length, width, speed, and load capacity to suit specific requirements. Widely used in production lines, loading/unloading areas, and automated systems, Belt Conveyors help improve productivity, reduce manual effort, and streamline operations.

Customizable Design for Diverse Applications

Engineered for industrial environments, this belt conveyor supports both stationary and mobile installations, with frame materials in either mild steel or stainless steel. Its dimension options and modular design make it adaptable to various material handling, packaging, and warehousing requirements, ensuring optimal fit and efficiency across industries.

Safety, Efficiency, and Reliability Combined

Featuring advanced safety measures like emergency stops and safety guards, alongside energy-efficient AC gear motors and corrosion-resistant finishes, this conveyor emphasizes dependable operation. The optional variable frequency drive and automatic belt alignment system enhance usability, while its robust design offers over 10 years of service life with routine maintenance.

FAQ's of Belt Conveyor:

Q: How do I select the appropriate conveyor width and length for my operation?

A: Choosing conveyor width and length depends on the size, weight, and throughput of materials handled. Our conveyors can be tailored from 300 to 1200 mm wide and 3 to 20 meters long, accommodating most industrial needs. Contact our support team for a consultation based on your specific project requirements.

Q: What are the key benefits of using this belt conveyor in industrial settings?

A: This belt conveyor offers high efficiency, versatility, and durability. It is built for heavy-duty applications, supports customizable dimensions, resists corrosion, and operates at low noise (<65 dB). Optional features like VFD control and automatic tracking ensure precise and safe operations, minimizing downtime and maintenance requirements.

Q: When is maintenance recommended for optimal conveyor performance?

A: Routine maintenance is advised to preserve the conveyor's longevity and performance. Lubrication, belt inspection, and cleaning should be scheduled regularly, with additional checks for alignment, motor function, and safety features. Following the recommended maintenance plan can extend service life beyond 10 years.

Q: Where can the conveyor be installed and what installation types are available?

A: This belt conveyor can be installed in various environments such as warehouses, packaging plants, and logistics centers. It is available in both stationary and mobile configurations, offering flexibility to match your facility's layout and workflow needs.

Q: What process controls are available for operating the conveyor?

A: The conveyor can be operated using a manual control system or an advanced PLC (Programmable Logic Controller) system. Speed adjustment via variable frequency drive (VFD) is available as an option, allowing for precise regulation of material flow and handling speed.

Q: How does the safety system enhance operator protection?

A: Safety is ensured through features like emergency stop controls, protective guards, and an optional automatic belt alignment system. These measures help prevent accidents, ensure operator safety, and keep your facility compliant with industry standards.
