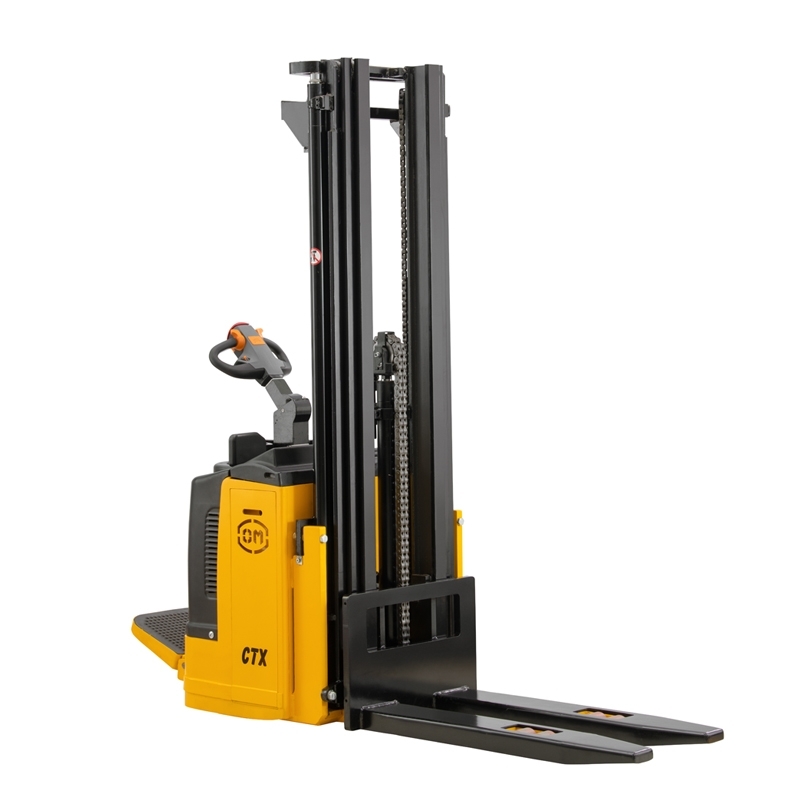

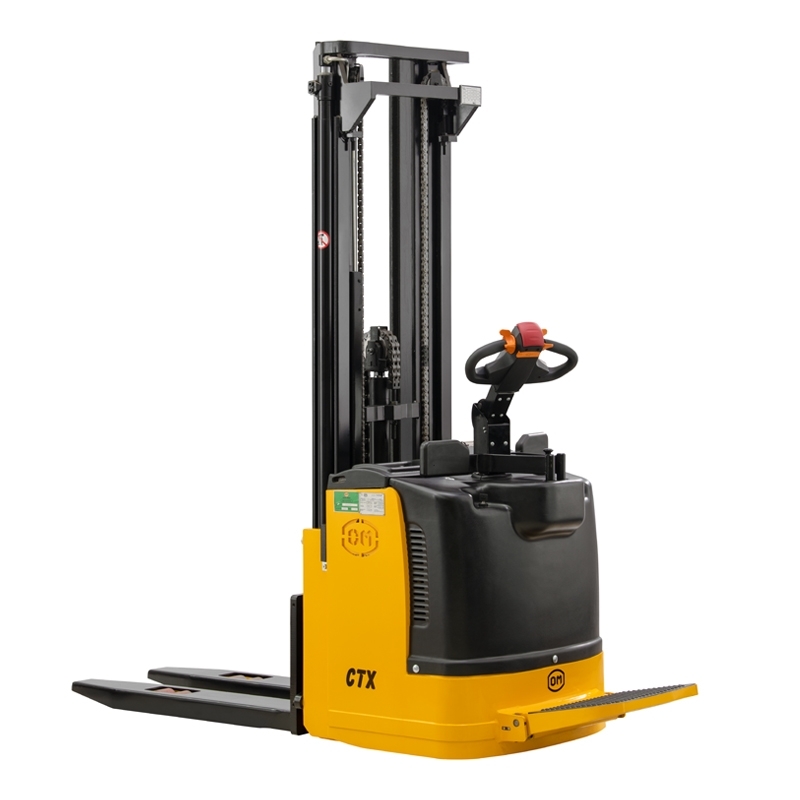

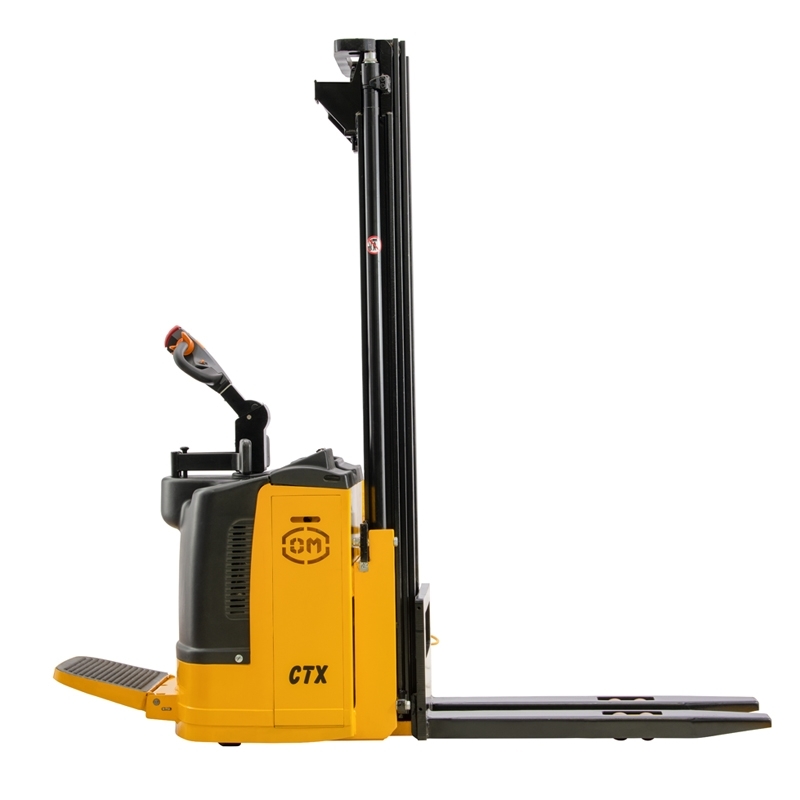

1.6 Ton Battery Operated Stacker With Electric Steering

1.6 Ton Battery Operated Stacker With Electric Steering Specification

Features
Energy Efficient, Safety Switch, Emergency Stop

Control System
Electric Steering

Handle Type
Ergonomic, Adjustable

Equipment Type
Electric Stacker

Rotation Type
360 Degree Rotational Steering

Motor Type
AC Drive Motor

Wheel Type
Polyurethane Wheels

Lifting Speed
80 mm/s (laden), 130 mm/s (unladen)

Forklift
No

Condition
New

Lifting Capacity
1.6 Ton

Max. Lifting Load
1600 kg

Max. Lifting Height
3500 mm

Power Source
Lead-Acid Battery

Power Consumption
2.2 kW

Voltage
24V DC

Feature
Ergonomic Design, Low Noise Operation

Attributes
Battery Powered, Electric Steering

Operator Type
Walk-behind/Stand-on

Upright Mast Height
4025 mm

Ground Clearance
88 mm

Fork Width
570 mm

Noise Level
<70 dB

Travel Speed
5.5 km/h (unladen), 5 km/h (laden)

Lowered Mast Height
2325 mm

Service Weight
1450 kg

Parking Brake
Electromagnetic

Battery Capacity
270Ah

Fork Length
1150 mm

Working Aisle Width
2350 mm

Turning Radius
1600 mm

Mast Type
Two Stage Mast

Charger Type
External, Automatic

1.6 Ton Battery Operated Stacker With Electric Steering Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Main Domestic Market
All India

About 1.6 Ton Battery Operated Stacker With Electric Steering

VNX-Fully Electric StackerCapacity- 1600 kg ,De-Rated CapacityMax Height -500kg,Load Centre: 600 mmLift Height: 4970 mmClose Mast Height:2187mmFree Lift height:1790mmFork Spread: 570mmWheels: Drive-Polyurethane ,Load-PolyurethaneSize of Wheels: 230 x 75 85 x 70Travel Speed: 5.5/6 km/hrLifting Speed :0.14 /0.22 m/sLowering Speed : 0.40/0.35Climbing Ability: 8%/16%Over All width:850 mmBattery:24V 270AhBattery Charger:InclusiveDrive Motor: 1.6 KwLifting Motor: 3.0 KwWheel Base: 1380 mmTurning Radius: 2090 mmWorking Aisle width: 2861mmWith 800X 1200 mm Pallet:Noise Level: 72 dB

Superior Ergonomic Design

The stacker boasts an ergonomically designed, adjustable handle and 360-degree electric steering, reducing operator fatigue and enhancing maneuverability. Its low noise operation ensures comfort in busy work environments, making daily use more pleasant and productive for operators.

Efficient and Safe Performance

Equipped with a 1.6 ton lifting capacity, advanced safety features like an emergency stop, safety switch, and electromagnetic parking brake, this stacker offers secure handling of heavy loads. Electric steering and polyurethane wheels allow smooth movement even in tight aisles, improving both efficiency and workplace safety.

Energy Efficient and Reliable Operation

The powerful 270Ah lead-acid battery, efficient 2.2 kW AC drive motor, and automatic external charger provide consistent performance with minimal downtime. This stacker allows operators to handle demanding tasks with reliable run-time and low maintenance requirements.

FAQ's of 1.6 Ton Battery Operated Stacker With Electric Steering:

Q: How does the electric steering system benefit the operator during use?

A: The electric steering system enables smooth 360-degree maneuverability, reducing physical effort and minimizing fatigue. This makes it easier to navigate tight spaces and optimize control, especially in congested warehouse aisles.

Q: What are the main advantages of the two-stage mast on this stacker?

A: The two-stage mast provides balanced lifting performance, allowing loads to be raised up to 3,500 mm. It ensures both stability during elevation and compact mast height when lowered, improving access through standard doorways and low-clearance areas.

Q: When should the battery be recharged, and how is it done?

A: Recharge the 270Ah lead-acid battery when the charge drops near the recommended threshold as indicated by the onboard display. The process is simple with the external automatic charger supplied, ensuring safe and efficient charging between shifts or overnight.

Q: Where is this stacker best utilized?

A: This stacker is ideal for warehouses, manufacturing plants, and industrial facilities across India where ergonomic design, efficient load handling, and safety are priorities, especially in narrow aisles or confined workspaces.

Q: What steps should be followed for safe operation and handling?

A: Always ensure the parking brake is engaged before loading or unloading. Use the ergonomic handle for control, engage the safety and emergency stop switch when required, and follow best practices such as not exceeding the 1.6-ton lifting capacity.

Q: How does the stacker contribute to energy efficiency and reduced noise pollution?

A: Its AC drive motor, lead-acid battery, and efficient electronic controls lower energy consumption, while the design maintains noise levels below 70 dB. This ensures a quieter, environmentally friendly workplace.
